Trend GAUGE/D60 Digital depth gauge 60mm jaw
GAUGE/D60

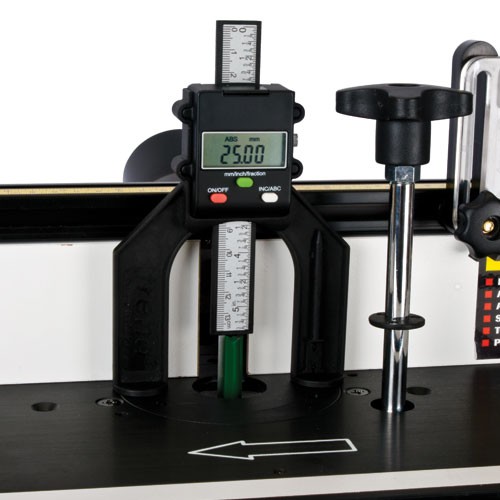

A digital depth gauge for saw benches and router tables. Vertical and Horizontal measuring.
For hand routers, saw benches and router tables.
LCD display for imperial, millimetres and fractions with an auto shut down after 5 mins.

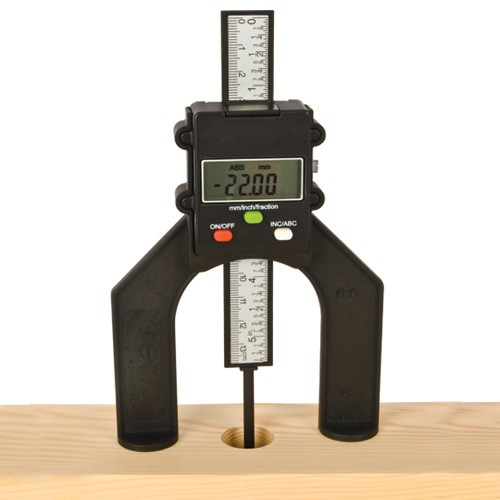

Removable pin allows hole depths to be measured. Pin can be parked on arm. Hole depth of 50.8mm (2 inch).
Free standing with magnetic feet and a flat back.
Injection moulded plastic with plastic rule.
Aperture 60mm wide.
Display has absolute and relative co-ordinate function.
Spare batteries available ref. BAT/CR2032/3V.
Trend GAUGE/D60

£26.61 Excl. VAT £31.93 Incl. VAT

Availability: In stock

Quantity:

Specification: A measuring range of 80 mm (3-1/8") Opening width of 60 mm (2-3/8") Resolution of 0.05 mm (0.002") Accuracy is +/- 0.1 mm (0.004") Repeatability is +/- 0.1 mm (0.004") Max measuring speed of 1.5 m/s (60 in/s) Weight = 92g ABS mode (Absolute) = Measuring single amounts from Zero INC mode (Relative) = Measuring from the last point
Product Includes: 1 x 3V CR2032 lithium battery
