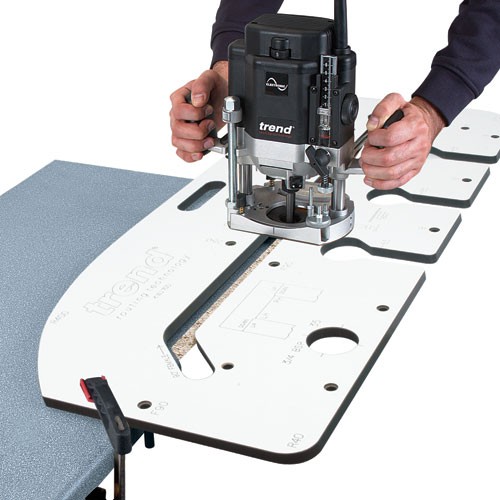

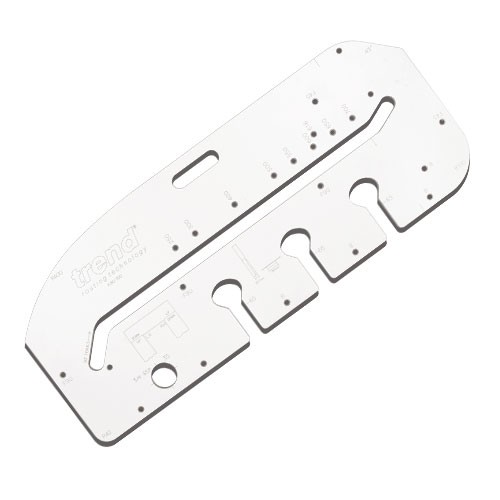

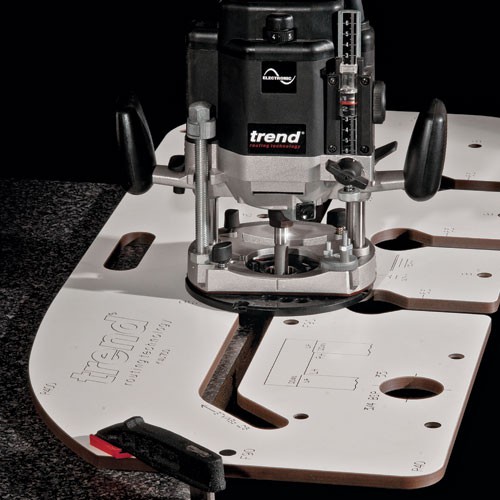

A trade work top jig for worktops up to 700mm.
Tough solid laminate jig that, 12mm thick. Allows you to cut both parts of the joint in 15 minutes (including setting up).

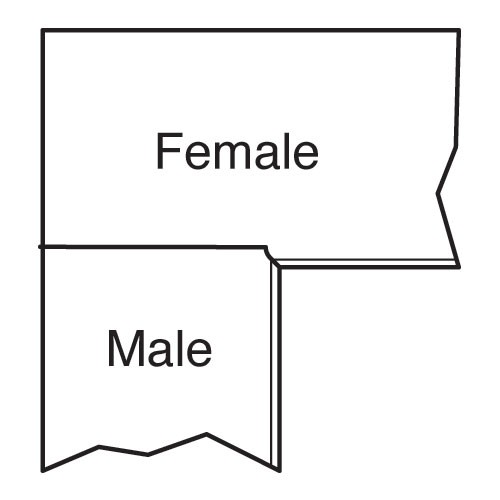

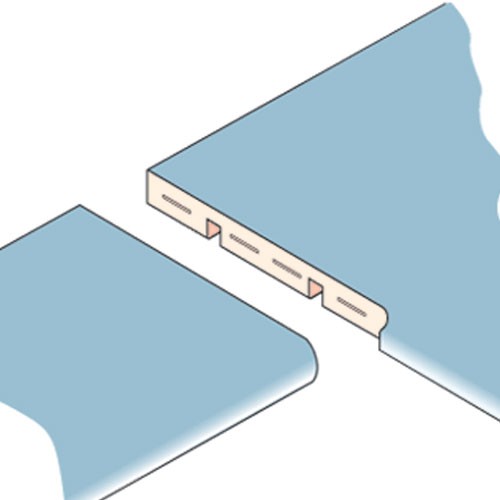

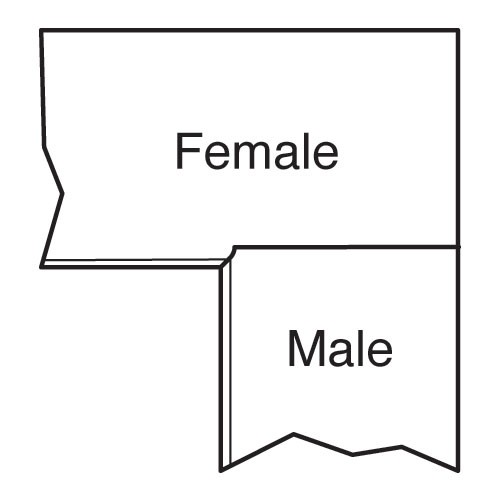

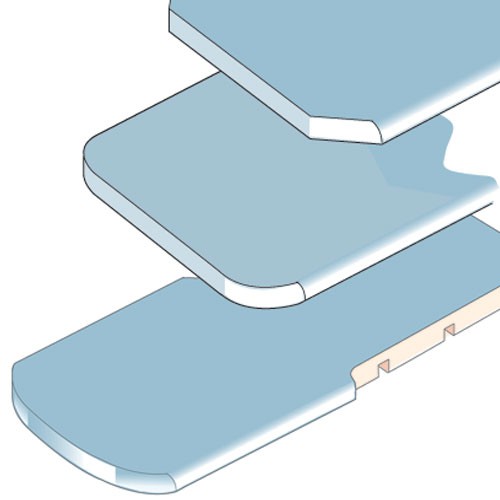

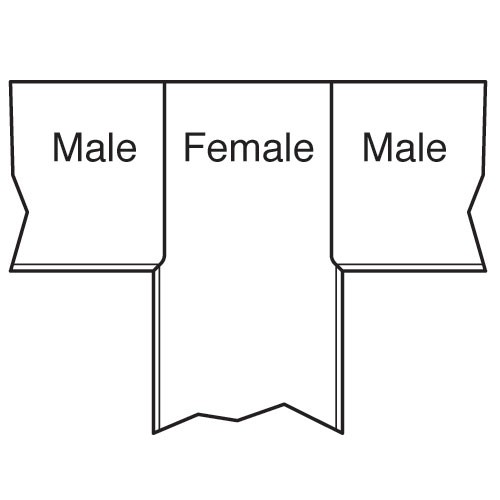

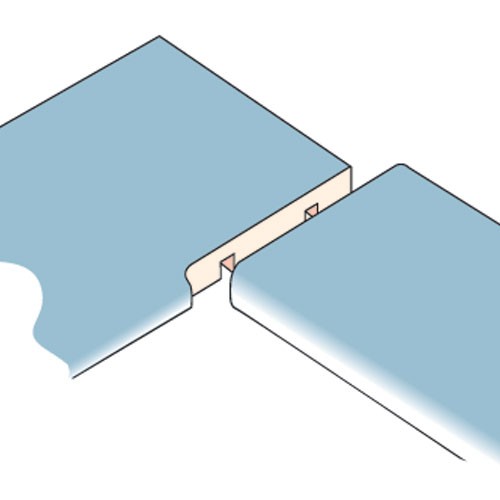

Right and left-hand corners, 45-degree end cut with slight radius, 400mm radius peninsular joint, 45-degree trade corner solution for hob units, 100mm and 40mm radius corner, 35mm kitchen door hole and a 3/4" BSP hole for mixer taps.
Fixed lengths to accommodate worktops 250mm, 300mm, 400mm, 500mm, 550mm, 600mm, 616mm, 650mm and 700mm wide.
Cuts worktops up to 40mm thick with or without anti-drip post formed edge.
Three open-ended bolt recesses for 150mm bolts (dog bone style).
Engraved lines for worktop cross-cut and short 65mm bolts.
Plastic pins, 10mm diameter, with tapered shoulder for tight fit offers three point pin contact which ensures ease of setting up.
Engraved markings for pin holes identification.
Pins made from strong ABS plastic.
Jig requires:
A portable plunge router with 12.7mm (1/2?) shank capacity, minimum 1300 watts.
A template guide bush with 30mm outside diameter ref. GB30.
A TCT router cutter with 12.7mm (1/2?) diameter and 50mm (2?) cut length.
Two clamps.
Trend KWJ700
