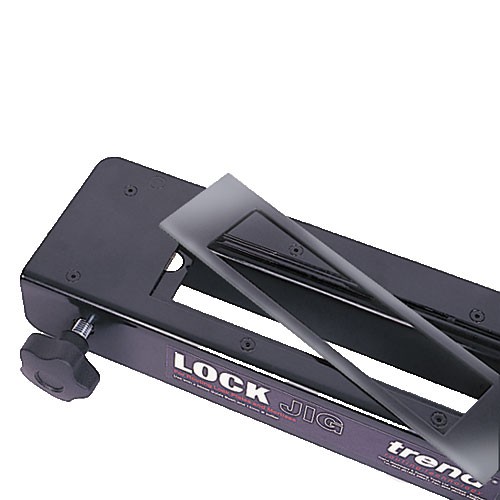

Trend LOCK/JIG/A Lock Jig Large
LOCK/JIG/A

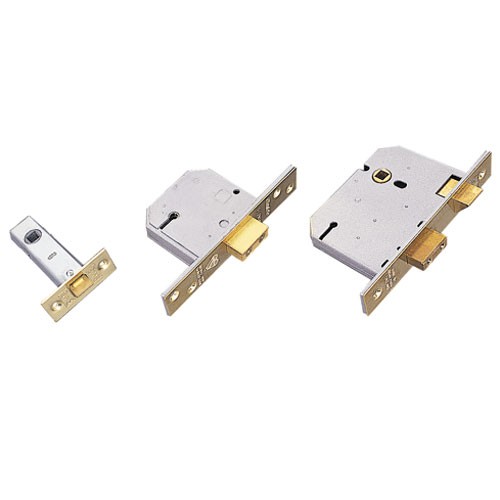

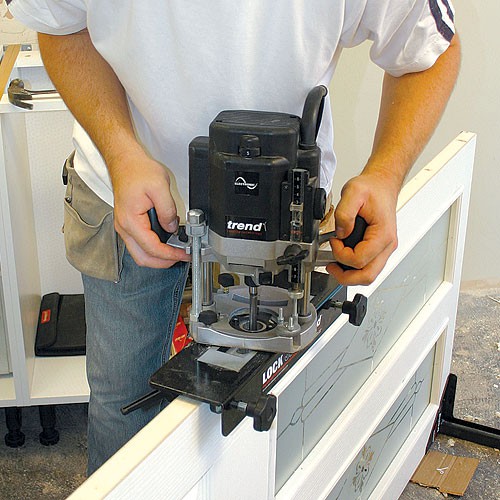

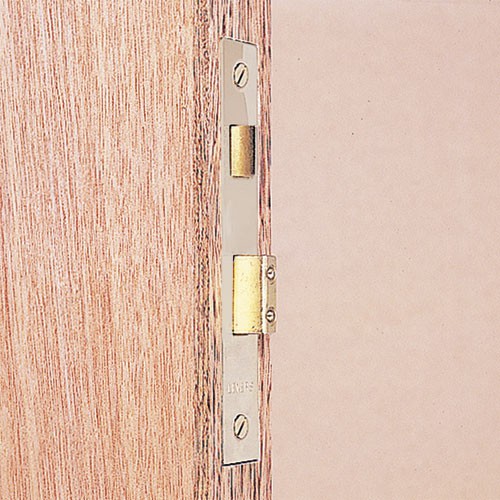

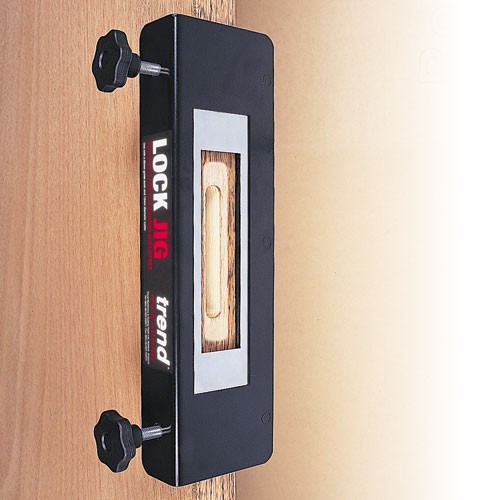

For quickly and accurately routing the face-plate and mortise for larger sizes of lock.
Suitable for DDA (Disability Discrimination Act) lock size.
With 17mm x 170mm mortise and 20mm x 235mm radius end face plate.
Includes adaptor plate for smaller templates (239mm x 60mm) to be fitted (as supplied with standard LOCK/JIG).
Suitable for 34mm to 58mm thick doors.
An auger bit and drill is required for deep mortises.

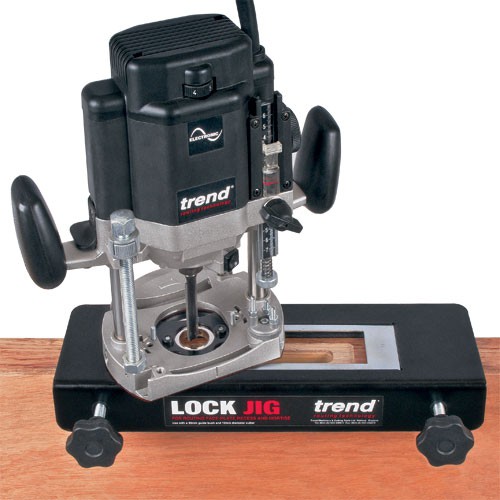

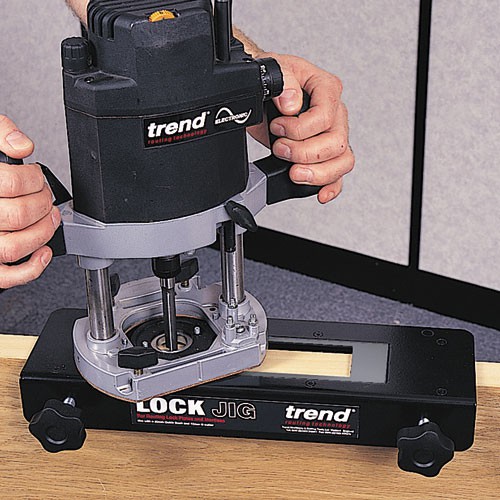

This jig requires a 1/2" plunge router with an 80mm plunge, fitted with a guide bush (30mm) with a 6mm spigot and 12mm diameter long reach cutter. A 1/4" plunge router can be used for face plate but will not attain full depth of mortise.

£106.90 Excl. VAT £128.28 Incl. VAT

Availability: In stock

Quantity:

Specification: A door thickness min = 34 mm Door thickness max = 58 mm Includes templates for locks having the following:- Face-plate dimensions (D x OL) Metric = Template 20x235 mm radius end = 1 24x235 mm radius end = 2 Mortise dimensions (D x OL) Metric = Template 17x170 mm = A* *Mortise is actually 180mm to give 5mm clearance each end.

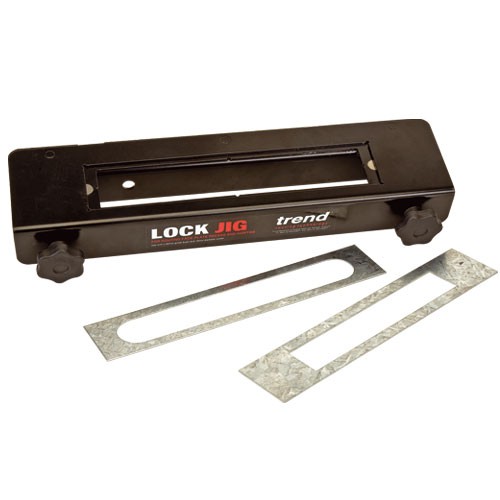

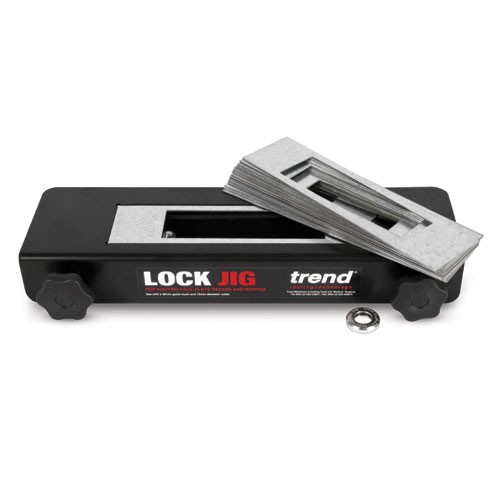

Product Includes: 1 x Guide bush collar
2 x Face plate template
1 x Mortise template
1 x Template adapter
6 x Spacer Fingers
