Trend MT/JIG/EURO Mortise and Tenon Jig Euro (Metric)

More Views

Trend MT/JIG/EURO Mortise and Tenon Jig Euro (Metric)
MT/JIG/EURO

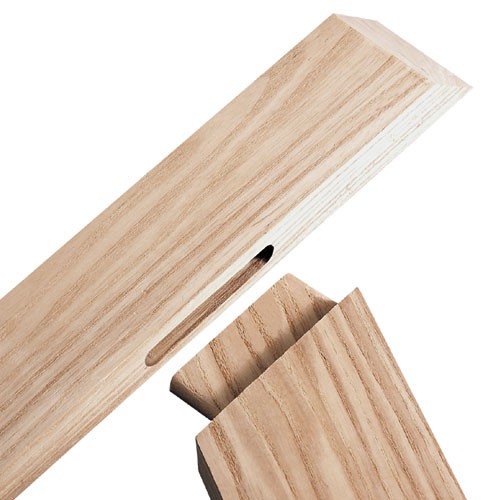

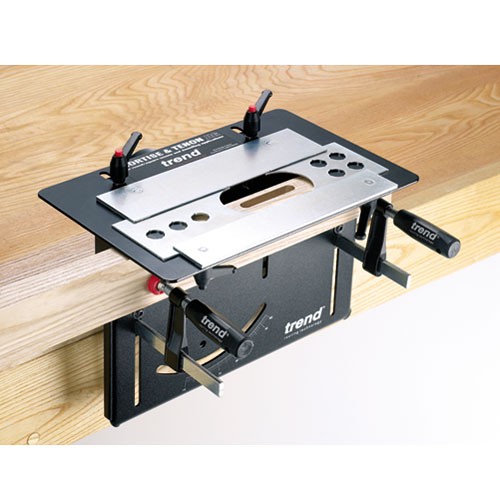

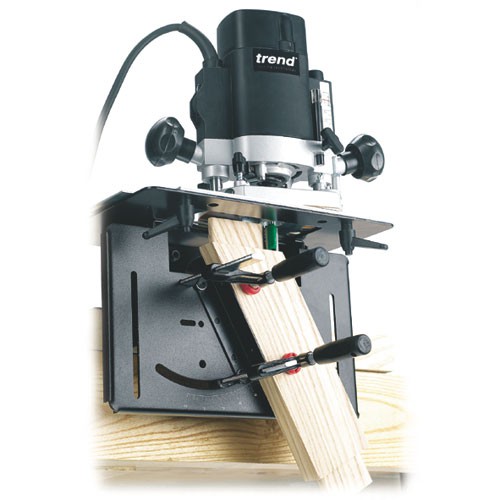

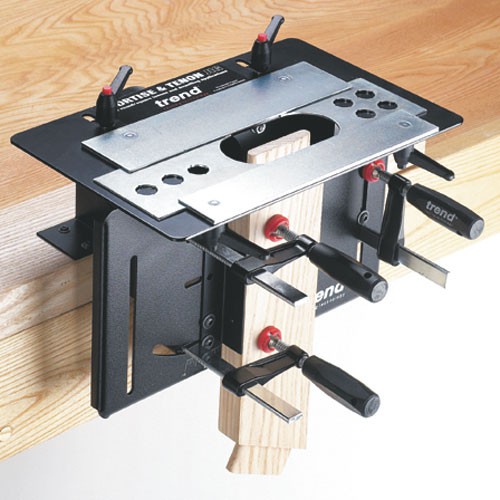

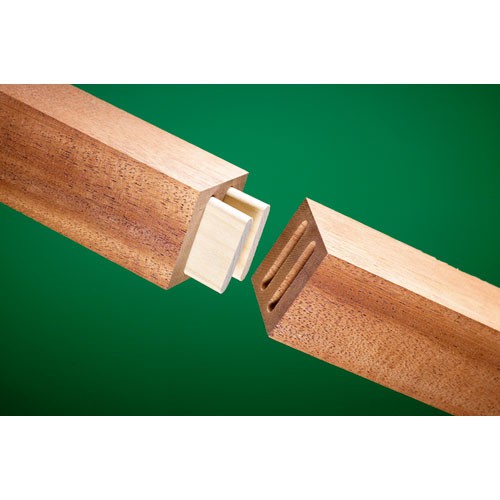

Jig for mortise and tenons, and dowel joints to be cut with a router.
Perfect for cabinets, chairs and tables.
CNC precision manufactured body and plates.
One set-up for both mortise and tenon providing seamlessly fitting joints.

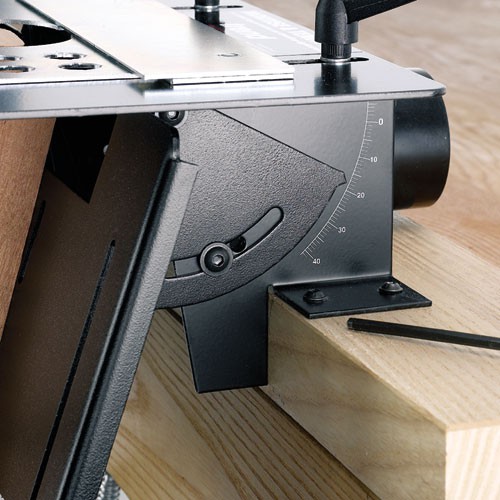

Entirely adjustable for compound angle joints up to 45-degrees.

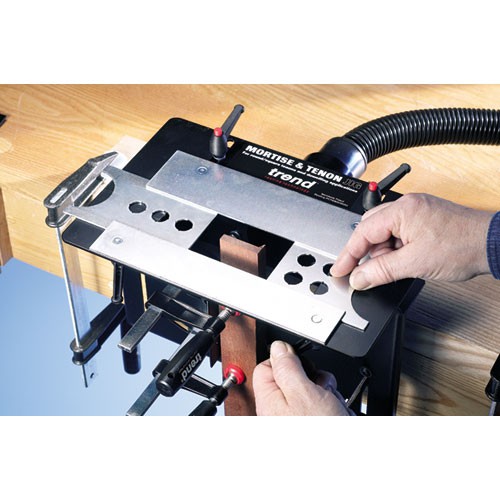

Reversible templates for round and square end tenons.

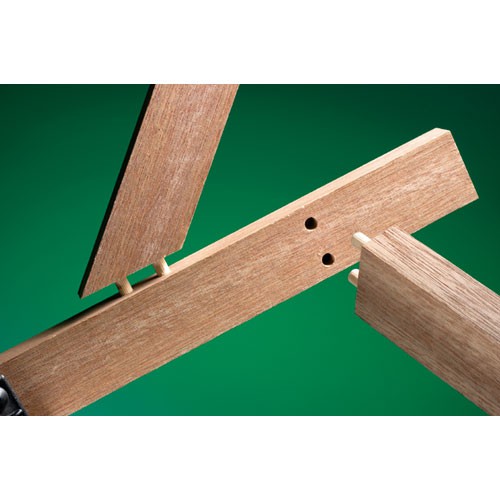

Templates can be used for precise dowelling applications.
Cuts mortise and tenon sizes 6mm to 16mm.
Guide bushes are included but router cutters are required.
A Unibase may be needed for certain makes and models of router.
All tenons are cut with a straight cutter, 16mm diameter (Ref. C025B).
The width of the tenon can be adjusted by using guide bushes with different diameters.
International PCT Appl No. PCT/GB02/00253.
Trend MT/JIG/EURO

£206.87 Excl. VAT £248.24 Incl. VAT

Availability: In stock

Quantity:

Specification: Material thickness min = 12 mm Material thickness max = 47 mm Tenon thickness min = 4.8 mm Tenon thickness max = 16 mm Tenon width max. using vertical guide+ =90 mm Mortise length max. using vertical guide++ =90 mm Angle tilt compound= -10 degree to 45 degrees + on end of 100 mm wide material. ++unlimited if vertical guide removed and wood is repositioned.
Product Includes: 5 x Guide bushes sizes 15.9mm, 22mm, 26mm, 28mm & 32mm
1 x Metal guide bush 30mm
4 x Clamps

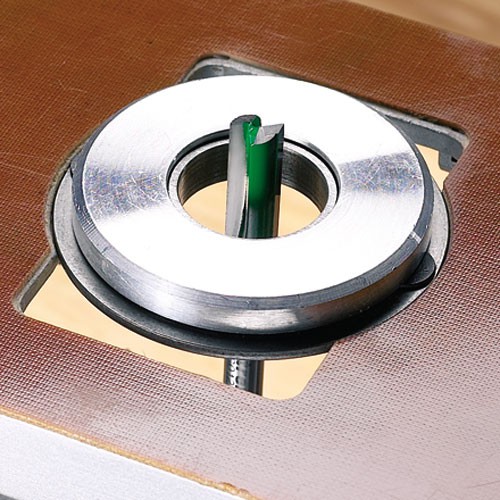

1 x Guide bush collar
1 x Set-up Bar
