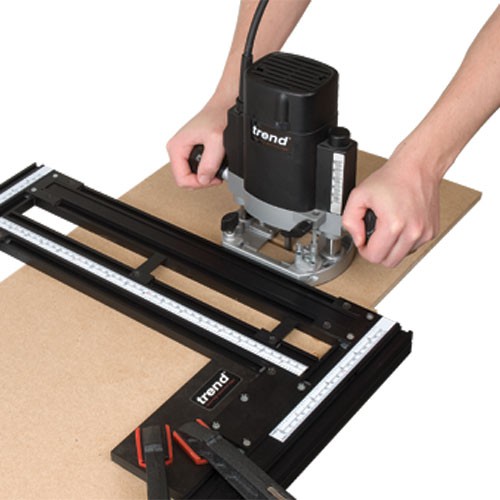

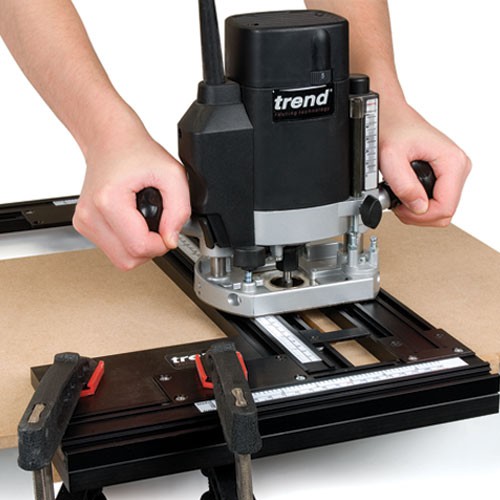

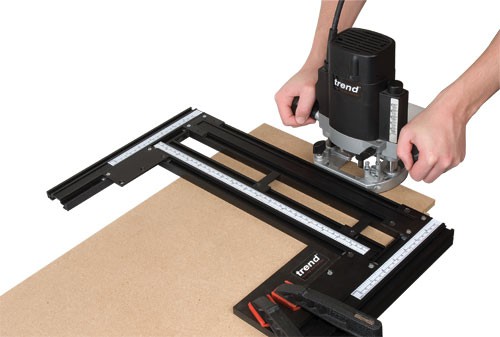

Kit enables grooves and tenons to be cut with a router.

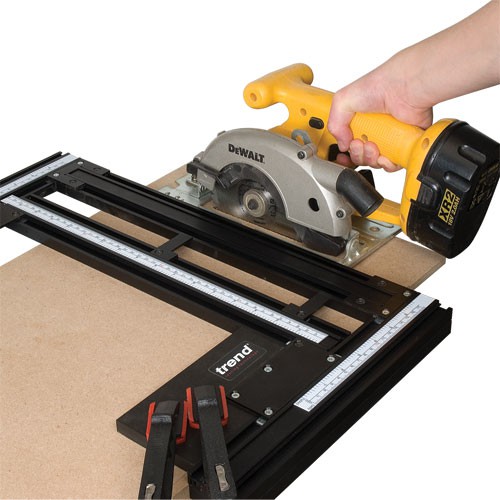

Can also be used to crosscut boards using a router or circular saw.
Frame can be adjusted to enable narrower or wider grooves to be routed.
The maximum possible adjustment is 70mm depending on the router base diameter.

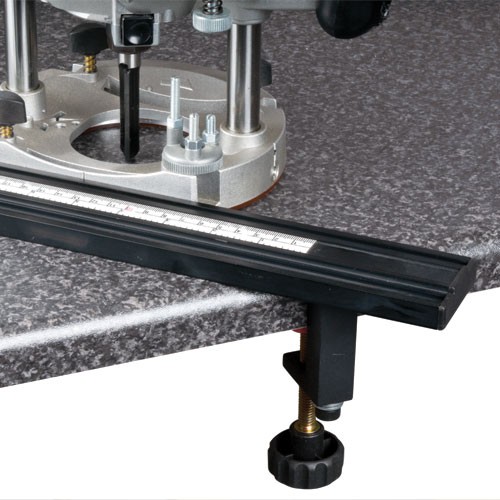

You can use the edge of the frame as a guide to trim a panel square with a router.
Two sliding stops let you set the groove length.
Squaring butt is able to take a spelch block to allow a full-length groove.
Fixing screws for this purpose come with the kit. The working length is 400mm.
Suitable for use with any plunge router with a guide bush of at least 8mm projection.
Please note router is not included.
Trend VJS/TG/JIG
